Overview

Basic Info.

Model NO.	AH130
Layout	90 Degree
Hardness	Hardened Tooth Surface
Installation	Vertical Type
Step	Single-Step
Type	Planetary Gear Box
Protection Level	IP65
Efficiency	95%
Noise	≤65dB
Ratio Range	5-18
Openness	Open
Transport Package	Carton
Specification	28*19.5*20.5cm
Trademark	Laitch
Origin	Jiangsu
HS Code	8483402000
Production Capacity	500PCS/Day

Packaging & Delivery

Package Size28.00cm * 19.50cm * 20.50cm Package Gross Weight2.800kg

Product Description

Product Description

Specification

Specification		Reduction ratio	AH60	AH85	AH130	AH200
Rated output torque	N.m	5	5	28	\	\
		10	4	18	50	90
		18	\	\	35	65
Max output torque	N.m	5-18	3 times Raled output torque
Allowable Output Rotation speed	rpm		200	200	200	200
Repeated positioning accuracy	arcsec		≤15	≤15	≤15	≤15
Max axial load	N		230	500	2000	4000
Torsional stiffness	N.m/arcmin		3.1	6.8	20	33
Service life	hr		20000
Effiency	%		≥95
Adapt to servo motor	W		50-100	200-400	200-400	750
Suitable for stepping motor			42 Stepper	57 Stepper	57-86 Stepper	86-110 Stepper
Operating Temperature	ºC		-20~90
Lubrication Method			Lubrication for life
Protection level			IP65
Installation Mode			Any
Concentricity of rotating platform	mm		0.01
Parallelism of rotating platform	mm		0.01	0.01	0.015	0.02
Noise	dB(A)		≤65	≤67	≤67	≤69

Application

More Products

Spur ReducerHelical ReducerStraight gear planetary gearboxes are designed for high-precision transmission with minimal backlash. They offer stable performance, compact structure, and excellent torque output, making them ideal for applications requiring accurate positioning and smooth operation.Helical gear planetary gearboxes provide higher torque transmission with reduced noise and vibration. The helical teeth ensure smoother and quieter operation, making them suitable for demanding industrial applications that require enhanced efficiency and stability.

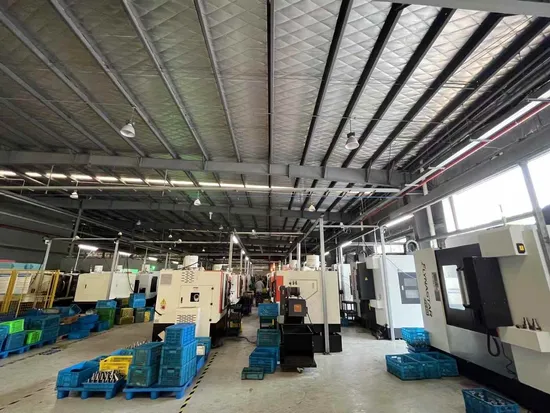

Right-angle ReducerHollow Rotary ReducerRight-angle planetary gearboxes are engineered to deliver power transmission in compact spaces, with a 90° output direction. They combine high efficiency and space-saving design, making them ideal for robotics, conveyors, and automated systems.Hollow rotary platforms offer precise positioning and smooth rotation with a central hollow shaft for easy wiring or piping. They are widely used in automation equipment, indexing tables, and robotic arms for accurate rotational control.Company Profile

Packaging & Shipping

FAQ
1. Are you a factory?
Yes, we are a source factory and provide customization services to meet your specific needs.
2. How can I customize a product?
You can contact us and provide your requirements along with any drawings. Our team will recommend the most suitable product for you or customize it based on your specifications.
3. What is the delivery time?
Peak period: Approximately 30 days
Non-peak period: Around 10-15 days
4. What is the warranty period?
The service life of our products is approximately 20,000 hours.
5. What payment methods do you accept?
We support L/C, T/T, D/P, D/A, Western Union, Paypal.
The payment terms are:
30% deposit before production
70% balance before shipping
For further inquiries, feel free to contact us!
